To be A CyberMan: Firewall Troubleshooting 3: OSPF Neighbor stuck in EXSTART/EXCHANGE state

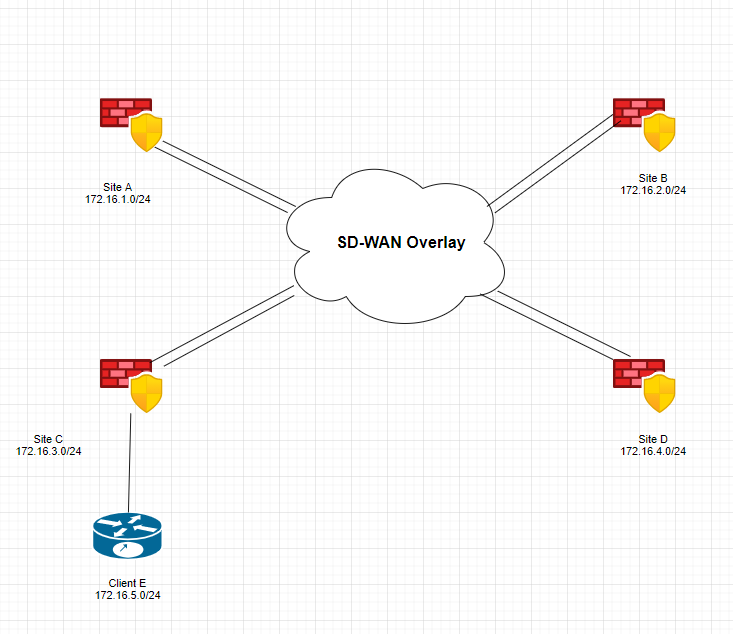

Network Diagram
-----------------------------------------------------------------------------------------


Background
-----------------------------------------------------------------------------------------
The Network Infrastructure is: FortiGate SD-WAN with OSPF over IPSec
From Site, D 172.16.4.0/24 has the Call Center Software connected to Client E 172.16.5.0/24 Call Service.
You can check out how to set up SD-WAN on Fortigate on this youtube link:https://www.youtube.com/watch?v=JSYC0mqXnrg

Issue
-----------------------------------------------------------------------------------------
We notified that the calls from SiteD were of poor quality.

Troubleshoot
-----------------------------------------------------------------------------------------
The call quality issue usually related to the Network connection. So we start troubleshooting from the network connection.
    1. Test the network connection from Site D to Client E
        We are able to reach to Client E call service IP.

    2. Check Routing table on Client D site Firewall:

            FWSiteD # get router info routing-table all
            O E2 172.16.5.0/24 [110/1] via 172.16.4.251, SiteA, 6d02h41m
            [110/1] via 172.16.4.252, SiteB, 6d02h41m

            The firewall was not routing to Client E properly. The OSPF route was routing over the Site A and Site B tunnel. We wanted the network to route over the Site C tunnel.

    3. Check OSPF neighbor table on Client D site Firewall:
        Neighbor ID Pri State Dead Time Address Interface
        172.16.3.1 1 Exchange/ - 00:00:34 172.16.4.253 Site C
        172.16.1.1 1 Full/ - 00:00:40 172.16.4.251 Site A
        172.16.2.1 1 Full/ - 00:00:38 172.16.4.252 Site B

        We can see at the neighbor table the tunnel to Toronto was stuck in Exchange.
        In order to become an OSPF neighbor, the following values must be matched on both routers.
            Area ID
            Authentication
            Hello and Dead Intervals
            Stub Flag
            MTU Size

    4. Check OSPF status

        FWSiteD # get router info ospf status
        FWSiteD # get router info ospf interface

        After taking a look at the tunnel interfaces the MTU size was mismatched on either end of the tunnel:
         Site D: MTU 1422
         Site C: MTU 1438

Remediation
-----------------------------------------------------------------------------------------
The issue can be resolved by either configuring the same MTU on both OSPF interfaces or enabling MTU-ignore on the OSPF interface.
1) Configure MTU on the OSPF Interface to match the neighbor OSPF interface
    FWSiteD #config router ospf
    FWSiteD #config ospf-interface
    FWSiteD #edit OSPF1
    FWSiteD #set mtu 1438

After this change was made our neighbor state was changed to Full

 Neighbor ID Pri State Dead Time Address Interface
        172.16.3.1 1 Full/ - 00:00:34 172.16.4.253 Site C
        172.16.1.1 1 Full/ - 00:00:40 172.16.4.251 Site A
        172.16.2.1 1 Full/ - 00:00:38 172.16.4.252 Site B

The routing table now showed network 172.16.5.0/24 going over the Site C tunnel:

 O E2 172.16.5.0/24 [110/1] via 172.16.4.253, Site C, 0d00h32m

This fixed the call quality issues.


References:
-----------------------------------------------------------------------------------------
FortiGate CLI Reference
https://docs.fortinet.com/document/fortigate/6.0.0/cli-reference/883627/router-info-ospf
OSPF Neighbor Problems Explained
https://www.cisco.com/c/en/us/support/docs/ip/open-shortest-path-first-ospf/13699-29.html
OSPF Neighborship Condition and Requirement
https://www.computernetworkingnotes.com/ccna-study-guide/ospf-neighborship-condition-and-requirement.html
FortiGate Configuring SD-WAN with an IPSec VPN and OSPF over IPSec
https://www.youtube.com/watch?v=JSYC0mqXnrg
Troubleshooting Note: OSPF Neighbour stuck in EXSTART/EXCHANGE state
https://kb.fortinet.com/kb/documentLink.do?externalID=FD35341
FortiOS 6.0.0 Handbook: Troubleshooting OSPF
https://docs.fortinet.com/document/fortigate/6.0.0/handbook/809463/troubleshooting-ospf
Troubleshooting tips for FortiOS routing (RIP, OSPF, BGP, static routes, ECMP)
https://kb.fortinet.com/kb/documentLink.do?externalID=FD31207
